SOUNDBOXES XVI: RESTORING THE NEC A-520E INTEGRATED AMPLIFIER



SOUNDBOXES XVI: RESTORING THE NEC A-520E INTEGRATED AMPLIFIER

As a matter of preference, this blog admires Japanese made Hi Fi of the 1970s. The following is a restoration report volunteered by a reader, Mr Robert Fry.

---

Needing an amplifier for my AV setup, I browsed eBay for a reasonably priced solution. Amongst the many contenders, I spotted this NEC A-520E, a slight oddball in that NEC never really gained a sizeable market share in audio products.

Here are its specifications:

Power output: 50 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 70kHz

Total harmonic distortion: 0.008%

Input sensitivity: 0.25mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 87dB (MM), 105dB (line)

Output: 140mV (line)

Speaker load impedance: 8Ω to 16Ω

Dimensions: 430 x 110 x 340mm

Weight: 9.5kg

Years of Production: 1978-80

Having owned a couple of NEC CD players, whose sound exceeded my expectations, I decided to go with the A-520E as an experiment.

It was very modestly priced at £70 so I clicked the 'Buy It Now' button and began this journey.

Upon arrival, I was pleased with the general condition of the amplifier.  There were no significant marks on the case or the control knobs.  Initially, the sound was rather dry and unfocused/tizzy.  It had a pretty dynamic sound while also seeming somewhat constrained at the frequency extremes.  Bass was indistinct and the treble a little flat and grainy. Here is a picture before restoration of the interior.



I gradually collected together the parts needed to do an extensive restoration.  I felt the amplifier had potential, so I went all-in!  I purchased replacements for all electrolytic capacitors, mostly Nichicon FG 'Fine Gold' due to their clean and neutral sonic signature.  I also replaced the bridge rectifier and the OP-AMP, resistors and some small capacitors in the Phono stage.  Each part was carefully considered for quality, physical fit and a neutral sound quality.  The parts also had to look right!



Upon beginning the mammoth task, I noticed the solder joints were failing and many exhibited signs of cracking.  So, I added to the list a reel of Multicore 62/36/2 LMP solder which makes lovely shiny, tight solder joints - far superior to the generic solder NEC had used 45 years ago.

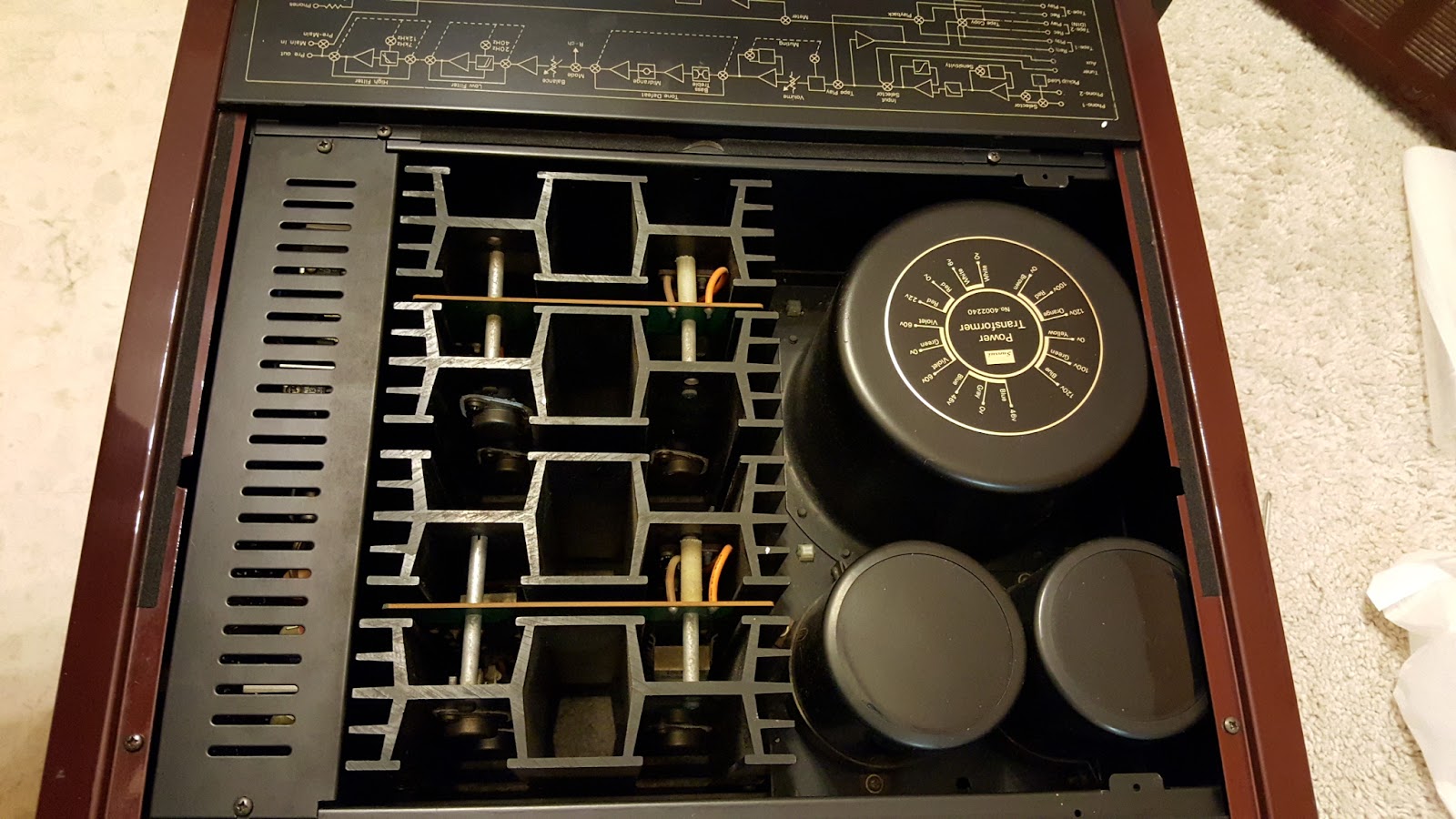

Work eventually began, taking each board out for best access.  Every solder joint was drained with MG chemicals Superwick and reflowed neatly with the Multicore LMP solder.  Absolutely every joint - including those of parts I did not need to change.  I had to banish the ongoing decay of the original solder completely.

At first power-up, it worked well and sounded pretty good, painting a smile across my face.  This thing sounded totally different.  The bass was now cleaner and well defined, the treble detailed and delivered with finesse - without being fatiguing, revealing subtleties of detail and ambience which I had previously not heard.  The last thing to do was set up the idling current to 13.2mV as detailed in the service manual. I left it for an hour or so to settle before checking and re-adjusting again about an hour later.  One channel was significantly off, the other was nearly correct.

After the setup, the sound improved further, tighter and even more neutral.  My Sony CDP-X559ES CD player's sound was reproduced faithfully.

Listening to John Holt's '1000 Volts of Holt' delivered a natural, highly realistic vocal and superb reggae bass lines with seemingly no effort.  The sweet treble embellished the soundstage with natural detail that injected life into the performance.

Playing Cusco's 'Desert island' CD showed off the fine instrument placing this amplifier is capable of.  'Galapagos' was delivered into the speakers with pulsing pace and sparkling detail, a real thrill to listen to.

I highly recommend restoring one of these if you get the chance.  It is a lot of work, but it pays off.

The 'Active Drive' design and care in layout makes for excellent sound quality at a modest price.  Also, I noticed the background noise is very, very low - almost inaudible with no signal at max volume. (AUX/CD source).

NEC are a semiconductor manufacturer and clearly know how to optimally implement the devices they make.  I take my hat off to the NEC engineers.. The A-520E truly is a hidden audio gem of yesteryear!

Contributed by:

ROBERT FRY

August 2026

[Please post any comments or reactions in the comment space below. I will put you in touch with Mr Fry if necessary.]
